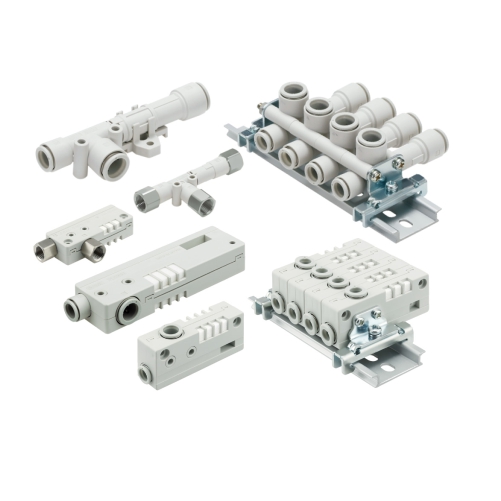

ZH Series Vacuum Ejector Body Ported Type/Box Type (Built-in Silencer)

ZH Series Vacuum Ejector Body Ported Type/Box Type (Built-in Silencer)

The ZH Series offers compact, body-ported (box type) vacuum ejectors with an integrated silencer for quieter operation. Designed for efficient vacuum generation in tight spaces, they combine energy-saving performance with noise reduction

  • Compact and lightweight
  • Overall length: Max. 11% reduction (6.7 mm shorter) [Body ported type]
  • Port height: Max. 25% reduction (9.1 mm shorter) [Body ported type]
  • Weight: Max. 74% reduction (65.1 g lighter) [Body ported type]
  • Volume: Max. 39% reduction (14.1 cm3 reduction) [Box type]
  • 4 mounting types: Direct mounting, Standard bracket mounting, L-bracket mounting, DIN rail mounting
  • A silencer and standard bracket are available. (Body ported type only)

Part Numbers
